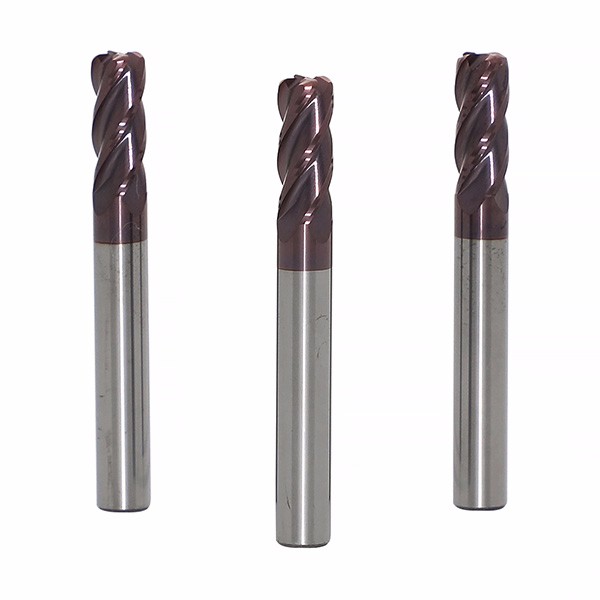

4刃硬质合金圆角铣刀 HRC60钨钢圆鼻铣刀尺寸参数
标准规格合金圆鼻铣刀
规格Model No. | 刃径Flute Diameter (mm) | 圆角Radius (mm) | 刃长Flute length (mm) | 柄径Shank Diameter (mm) | 总长Overall length (mm) |
D2*R0.5*6*D4*50 | 2.0 | 0.5 | 6 | 4 | 50 |
D3*R0.2*8*D4*50 | 3.0 | 0.2 | 8 | 4 | 50 |
D3*R0.5*8*D4*50 | 3.0 | 0.5 | 8 | 4 | 50 |
D4*R0.5*10*D4*50 | 4.0 | R0.5 | 10 | 4 | 50 |
D4*R1*10*D4*50 | 4.0 | R1 | 10 | 4 | 50 |
D6*R0.5*15*D6*50 | 6.0 | R0.5 | 15 | 6 | 50 |
D6*R1*15*D6*50 | 6.0 | R1 | 15 | 6 | 50 |
D8*R0.5*20*D8*60 | 8.0 | R0.5 | 20 | 8 | 60 |
D8*R1*20*D8*60 | 8.0 | R1 | 20 | 8 | 60 |
D8*R1.5*20*D8*60 | 8.0 | R1.5 | 20 | 8 | 60 |
D10*R0.5*25*D10*75 | 10.0 | R0.5 | 25 | 10 | 75 |
D10*R1*25*D10*75 | 10.0 | R1 | 25 | 10 | 75 |
D10*R1.5*25*D10*75 | 10.0 | R1.5 | 25 | 10 | 75 |
D12*R0.5*30*D12*75 | 12.0 | R0.5 | 30 | 12 | 75 |
D12*R1*30*D12*75 | 12.0 | R1 | 30 | 12 | 75 |
D12*R1.5*30*D12*75 | 12.0 | R1.5 | 30 | 12 | 75 |
D12*R2*30*D12*75 | 12.0 | R2 | 30 | 12 | 75 |
加长型钨钢圆角铣刀
规格Model No. | 刃径Flute Diameter (mm) | 圆角Radius (mm) | 刃长Flute length (mm) | 柄径Shank Diameter (mm) | 总长Overall length (mm) |
D2*R0.5*6*D4*75 | 2.0 | R0.5 | 6 | 4 | 75 |
D3*R0.5*8*D4*75 | 3.0 | R0.5 | 8 | 4 | 75 |
D4*R0.5*11*D4*75 | 4.0 | R0.5 | 11 | 4 | 75 |
D4*R1*11*D4*75 | 4.0 | R1 | 11 | 4 | 75 |
D4*R0.5*11*D4*100 | 4.0 | R0.5 | 11 | 4 | 100 |
D4*R1*11*D4*100 | 4.0 | R1 | 11 | 4 | 100 |
D6*R0.5*15*D6*75 | 6.0 | R0.5 | 15 | 6 | 75 |
D6*R1*15*D6*75 | 6.0 | R1 | 15 | 6 | 75 |
D6*R0.5*15*D6*100 | 6.0 | R0.5 | 15 | 6 | 100 |
D6*R1*15*D6*100 | 6.0 | R1 | 15 | 6 | 100 |
D8*R0.5*20*D8*75 | 8.0 | R0.5 | 20 | 8 | 75 |
D8*R1*20*D8*75 | 8.0 | R1 | 20 | 8 | 75 |
D8*R1.5*20*D8*75 | 8.0 | R1.5 | 20 | 8 | 75 |
D10*R0.5*25*D10*100 | 10.0 | R0.5 | 25 | 10 | 100 |
D10*R1*25*D10*100 | 10.0 | R1 | 25 | 10 | 100 |
D10*R1.5*25*D10*100 | 10.0 | R1.5 | 25 | 10 | 100 |
D12*R0.5*30*D12*100 | 12.0 | R0.5 | 30 | 12 | 100 |
D12*R1*30*D12*100 | 12.0 | R1 | 30 | 12 | 100 |
D12*R1.5*30*D12*100 | 12.0 | R1.5 | 30 | 12 | 100 |
D12*R2*30*D12*100 | 12.0 | R2 | 30 | 12 | 100 |
