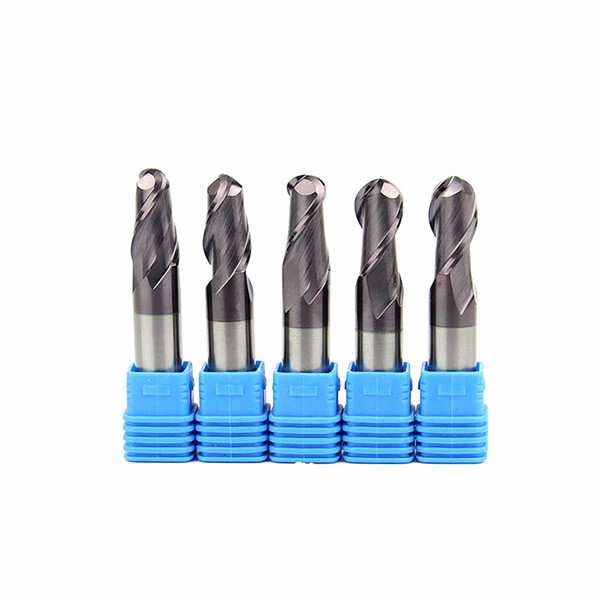

HRC60钢用硬质合金球头铣刀 2刃钨钢球刀尺寸参数
HRC60 2刃钨钢球刀标准款规格
| 规格Model No. | 刃径Flute Diameter (mm) | 刃长Flute length (mm) | 柄径Shank Diameter (mm) | 总长Overall length (mm) |
| R0.5*2*D4*50 | R0.5 | 2 | 4 | 50 |
| R0.75*3*D4*50 | R0.75 | 3 | 4 | 50 |
| R1*4*D4*50 | R1 | 4 | 4 | 50 |
| R1.25*5*D4*50 | R1.25 | 5 | 4 | 50 |
| R1.5*6*D4*50 | R1.5 | 6 | 4 | 50 |
| R1.75*7*D4*50 | R1.75 | 7 | 4 | 50 |
| R2*8*D4*50 | R2 | 8 | 4 | 50 |
| R2.5*10*D6*50 | R2.5 | 10 | 6 | 50 |
| R3*12*D6*50 | R3 | 12 | 6 | 50 |
| R4*16*D8*60 | R4 | 16 | 8 | 60 |
| R5*20*D10*75 | R5 | 20 | 10 | 75 |
| R6*24*D12*75 | R6 | 24 | 12 | 75 |
| R7*28*D14*100 | R7 | 28 | 14 | 100 |
| R8*32*D16*100 | R8 | 32 | 16 | 100 |
| R9*36*D18*100 | R9 | 36 | 18 | 100 |
| R10*40*D20*100 | R10 | 40 | 20 | 100 |
HRC60 2刃钨钢球刀标加长款规格
| 规格Model No. | 刃径Flute Diameter (mm) | 刃长Flute length (mm) | 柄径Shank Diameter (mm) | 总长Overall length (mm) |
| R2*8*D4*75 | R2 | 8 | 4 | 75 |
| R2*8*D4*100 | R2 | 8 | 4 | 100 |
| R3*12*D6*75 | R3 | 12 | 6 | 75 |
| R3*12*D6*100 | R3 | 12 | 6 | 100 |
| R4*16*D8*75 | R4 | 16 | 8 | 75 |
| R4*16*D8*100 | R4 | 16 | 8 | 100 |
| R5*20*D10*100 | R5 | 20 | 10 | 100 |
| R6*24*D12*100 | R6 | 24 | 12 | 100 |
| R3*12*D6*150 | R3 | 12 | 6 | 150 |
| R4*16*D8*150 | R4 | 16 | 8 | 150 |
| R5*20*D10*150 | R5 | 20 | 10 | 150 |
| R6*24*D12*150 | R6 | 24 | 12 | 150 |
| R7*28*D14*150 | R7 | 28 | 14 | 150 |
| R8*32*D16*150 | R8 | 32 | 16 | 150 |
| R9*36*D18*150 | R9 | 36 | 18 | 150 |
| R10*40*D20*150 | R10 | 40 | 20 | 150 |
以上如果没有您需要的2刃球刀尺寸，请随时与wxsoon联系。我们根据样品或图纸接受OEM/ODM。
